Seamless Alloy Steel Tube

These Alloy steel pipes & tubes are used in different application industry like oil refineries,
chemical plants, fertilizers plants, petrochemicals plants and sugar mills etc.

Classification ：

Seamless Steel Pipe

+8613176025308

business@sdhmsteel.com

E-mail

Pipe Standards

Product message

Product Details

Product introduction

Seamless Alloy Steel Tube

Type: Alloy Pipe, Alloy Tube, Alloy Steel Pipe, Alloy Steel Tube
Application: In Petroleum, Aerospace, Chemical, Power, Boilers, Military Industry

Specification: Outside Diameter: 1/8'' ~ 26''
Wall Thickness: SCH 30, 30, 40, 60, 80, 120, 140, 160, XS, XXS, STD
Length: Single Random, Double Random, Cut Length max to 23m
Standard & Grade: ASTM A333, A335 P5/P9/P11/P22/P91, DIN 17175, JIS G3458

End: Plain End, Beveled End, Thread End

Packing: Bundled with Hemp Rope/In Bulk
Alloy pipe is a kind of seamless steel pipe, its performance is much higher than that of general seamless steel pipe, because this type of steel pipe contains more Cr, its high temperature resistance, low temperature resistance, corrosion resistance performance is much better than other Steel pipe , so the alloy pipe is widely used in petroleum, aerospace, chemical, electric power, boiler, military and other industries.

Product	SEAMLESS / ERW / SAW ALLOY STEEL PIPE
Dimension	6 mm - 1080 mm
Thickness	1mm - 135 mm
Length	3 m - 12 m or according to the requirements of clients
Standard	ASTM GB DIN
Steel grade	A106/53/179/214/192/210 A/B/C ST37.2/35.4/35.8/52/52.3/52.4/42/45 10# 20# 45# P2, P12, P11, P22, P5, P9, P91 T2, T11,T5,T9,T22, 4140, 12CrMo, 15CrMo, 12Cr2Mo, 1Cr5Mo, 2CrMo4, 1Cr9Mo, 10CrMo910, etc.
Trade terms	FOB/CIF/CFR
Payment terms	T/T, L/C
Delivery time	10 or according to the real quantity of the tubes
Surface treatment	Black painting Varnish painting 3PE Hot galvanized or other coating according to your requirements Bare tube
End of tubes	Beveled, plain, thread, plastic caps
Inspection	Ultrasonic examination, eddy inspection, hydrosttic testing etc.
Package	Bundles, lossen or according to your requirements
Certificate	API 5L/5CT, ISO, PED etc.

Technical data

Chemical Composition

C, %	Mn, %	P, %	S, %	Si, %	Cr, %	Mo, %
0.05-0.15	0.30-0.60	0.025 max	0.025 max	0.50-1.00	1.00-1.50	0.44-0.65

Mechanical Properties

Tensile Strength, MPa	Yield Strength, MPa	Elongation, %
415 min	205 min	30 min

Outside Diameter & Tolerance

ASTM A450	Hot rolled	Outside Diameter, mm	Tolerance, mm
		OD≤101.6	+0.4/-0.8
		101.6＜OD≤190.5	+0.4/-1.2
		190.5＜OD≤228.6	+0.4/-1.6
	Cold Drawn	Outside Diameter, mm	Tolerance, mm
		OD＜25.4	±0.10
		25.4≤OD≤38.1	±0.15
		38.1＜OD＜50.8	±0.20
		50.8≤OD＜63.5	±0.25
		63.5≤OD＜76.2	±0.30
		76.2≤OD≤101.6	±0.38
		101.6＜OD≤190.5	+0.38/-0.64
		190.5＜OD≤228.6	+0.38/-1.14
ASTM A530 & ASTM A335	NPS	Outside Diameter, inch	Tolerance, mm
		1/8≤OD≤1-1/2	±0.40
		1-1/2＜OD≤4	±0.79
		4＜OD≤8	+1.59/-0.79
		8＜OD≤12	+2.38/-0.79
		OD>12	±1%

Wall thickness & Tolerance

ASTM A450	Hot rolled	Outside Diameter, mm	Tolerance, %
		OD≤101.6, WT≤2.4	+40/-0
		OD≤101.6, 2.4＜WT≤3.8	+35/-0
		OD≤101.6, 3.8＜WT≤4.6	+33/-0
		OD≤101.6, WT>4.6	+28/-0
		OD>101.6, 2.4＜WT≤3.8	+35/-0
		OD>101.6, 3.8＜WT≤4.6	+33/-0
		OD>101.6, WT>4.6	+28/-0
	Cold Drawn	Outside Diameter, mm	Tolerance, %
		OD≤38.1	+20/-0
		OD>38.1	+22/-0
ASTM A530	NPS	Outside Diameter, inch	Tolerance, %
		1/8≤OD≤2-1/2	+20.0/-12.5
		3≤OD≤18, WT/OD≤5%	+22.5/-12.5
		3≤OD≤18, WT/OD>5%	+15.0/-12.5
		OD≥20, WT/OD≤5%	+22.5/-12.5
		OD≥20, WT/OD>5%	+15.0/-12.5

Standard
ASTM A335--for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service
ASTM A519--for Seamless Carbon and Alloy Steel Mechanical Tubing
ASTM A213--for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM ASME (S)A-335/(S)A-335M Grade and Chemical Composition

Grade	UNS	C≤	Mn	P≤	S≤	Si≤	Cr	Mo
P1	K11522	0.10~0.20	0.30~0.80	0.025	0.025	0.10~0.50	-	0.44~0.65
P2	K11547	0.10~0.20	0.30~0.61	0.025	0.025	0.10~0.30	0.50~0.81	0.44~0.65
P5	K41545	0.15	0.30~0.60	0.025	0.025	0.50	4.00~6.00	0.44~0.65
P5b	K51545	0.15	0.30~0.60	0.025	0.025	1.00~2.00	4.00~6.00	0.44~0.65
P5c	K41245	0.12	0.30~0.60	0.025	0.025	0.50	4.00~6.00	0.44~0.65
P9	S50400	0.15	0.30~0.60	0.025	0.025	0.50~1.00	8.00~10.00	0.44~0.65
P11	K11597	0.05~0.15	0.30~0.61	0.025	0.025	0.50~1.00	1.00~1.50	0.44~0.65
P12	K11562	0.05~0.15	0.30~0.60	0.025	0.025	0.50	0.80~1.25	0.44~0.65
P15	K11578	0.05~0.15	0.30~0.60	0.025	0.025	1.15~1.65	-	0.44~0.65
P21	K31545	0.05~0.15	0.30~0.60	0.025	0.025	0.50	2.65~3.35	0.80~1.60
P22	K21590	0.05~0.15	0.30~0.60	0.025	0.025	0.50	1.90~2.60	0.87~1.13
P91	K91560	0.08~0.12	0.30~0.60	0.020	0.010	0.20~0.50	8.00~9.50	0.85~1.05
P92	K92460	0.07~0.13	0.30~0.60	0.020	0.010	0.50	8.50~9.50	0.30~0.60

Note: (S)A335 P91 other chemical composition are : V 0.18~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.06~0.10
(S)A335 P92 other chemical composition are : V 0.15~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.04~0.09; W 1.5~2.00 ; B 0.001~0.006

Factory profile

Adhering to the tenet of "integrity first, quality for survival", the company has established a complete marketing channel of "based in North China, radiating the whole country, and facing the world", and has not only established a solid strategic partnership with many domestic and foreign enterprises.We have been committed to product development, production and sales, after more than ten years of efforts, our products have been widely used in various fields.

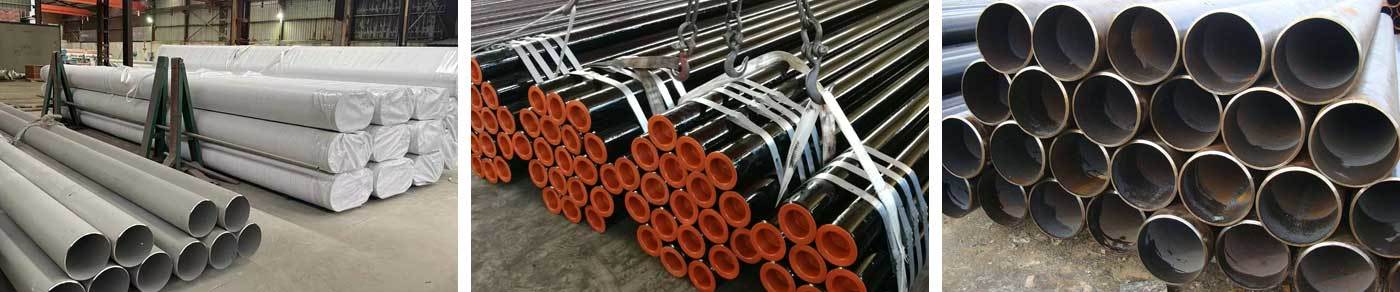

Packing method: Packing according to customer's requirement.

The company has more than 110,000 square meters of production and processing base, fully introduced the international advanced modern automatic production and processing equipment, and took the lead in passing the ISO9001, TS16949, BV, SGS and other international well-known institutions certification.The products are mainly exported to Italy, Mexico, South Korea, Israel, Turkey, India, Pakistan, Kyrgyzstan, Oman, Kazakhstan, Vietnam, Myanmar and other countries. The company's supply is sufficient, the variety is complete, order production is fast, welcome domestic and foreign manufacturers, traders to contact us.

Company Advantages
1. We are a large-scale production enterprise integrating production, research and development, and can customize the products required by customers.
2. We have a perfect after-sales service system, which can track the problems encountered by customers in production at any time and provide corresponding technical support, so as to share our high-quality resources with customers.
3. After more than ten years of development, the company has complete product varieties and large inventory, which can be delivered in the shortest time.
4. Free samples are available.
5. With obvious price advantage, the company has complete production process, from raw materials to finished products integrated production can maximize the cost savings.
